Hexagon Bolt ni hpe shinggrup da ai
Standard: JIS B 1189
Lagu ga: N hkru n kaja ai lam ni hpe ka da ai.
Arung arai: Hpun ni hpe galai shai kau ai
Bai nna mying: Hex Hex Hex Flange Bolt
Arung arai: Carbon Steel
Arung arai ni: 10.9
Diameter: M4/ M5/ M8/ M10/ M12
Hpang jahtum: Galvanized, yu reng ai lam, Dacromet, sumla hkrung galaw ai, Cadmium Electroplate, Nickel Plated, Nickel
Head Type: Hexagon baw
Drive Type: Shinggan na Hex
MOQ: 1000kgs
Hpan na aten: Nhtoi 30 kaw nna 6 ya du hkra
Product Introduction
AYA Faseners (Hebei) Co., Ltd. gaw Miwa mung hta n-gun n rawng ai hexagon bolt ni hpe galaw shapraw ai ni hte garan jaw ai ni kaw na langai mi rai nga ai. Ndai Miwa mung kaw anhte a factory kaw nna galaw ai quality tsaw ai flanged hexagon bolts ni hpe mari la na matu hkum tsang. Manu bawngban na matu anhte hpe matut mahkai mai ai.
Mungkan ting hta laksan galaw da ai malu masha ni hpe garan gachyan ai wa hku nna, AYA a daw jau ai lam gaw AYA a arai ni zawn sha, mari ai ni hte mung ni htep nga ai. Hkrang shapraw ai kaw nna, tsun sang lang dan ai kaw na, AYA gaw, customers ni a myit tsang ai lam hpe yeng seng kau na matu, customers ni hpe lawan ladan hte n shakut na matu, lawan ladan hte n shakut na re.
Product hpe tsun dan ai
Arung Arung | Hexagon Bolt ni hpe shinggrup da ai |
Bai nna mying shamying ai; shamying ai | Hex Head Flang Bolt |
Arung arai | Carbon Steel |
Madang | JIS B 1189 |
Arung arai ni hpe garan jaw ai. | 10.9 |
Diameter | M4/ M5/ M6/ M8/ M10/ M12 |
Shangut kau ai | Plain, Black, Zinc, Hot Diped, Galvanize galaw ai, n san seng ai, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated . |
Type baw nu | Hexagon baw |
Type mawdaw gau ai | Shinggan na Hex |
NA | N hkru n kaja ai lam/ Dawdan ai lam |

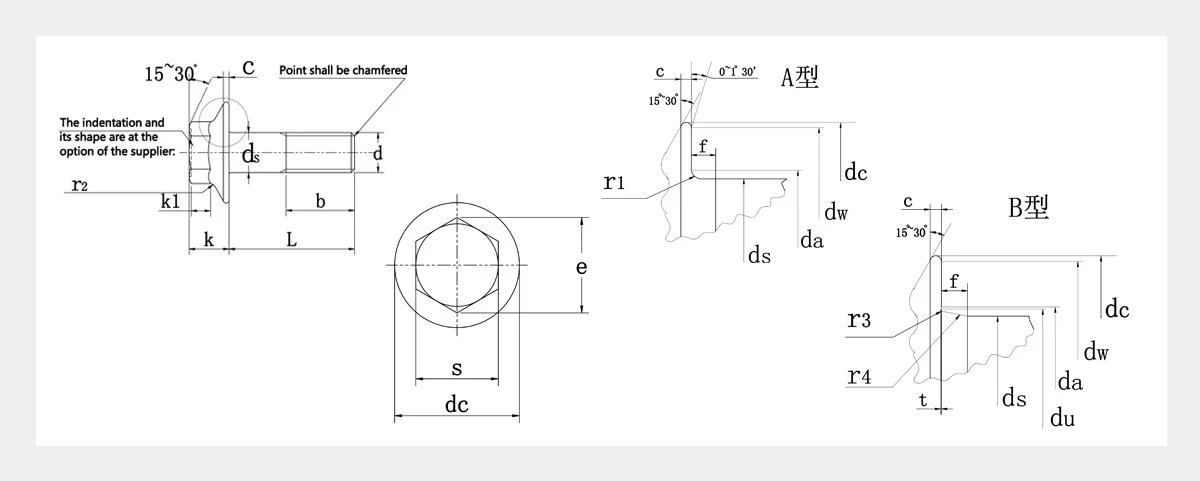

Lam amyu myu hpe shingdaw yu ai.
| Chyum Laika d | M4 | M5 | M6 | M8 | M10 | M12 | |
| P | Htingbyen | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
| NA | / | / | / | 1 | 1.25 | 1.25 | |
| ds | max=nominal size | 4 | 5 | 6 | 8 | 10 | 12 |
| shata | 3.9 | 4.9 | 5.9 | 7.85 | 9.85 | 11.8 | |
| s | max=nominal size | 7 | 8 | 10 | 12 | 14 | 17 |
| shata | 6.8 | 7.8 | 9.8 | 11.75 | 13.75 | 16.75 | |
| e | shata | 7.74 | 8.87 | 11.05 | 13.25 | 15.51 | 18.9 |
| dc | yawng; max | 10.5 | 12 | 14 | 17.5 | 21 | 25 |
| dw | shata | 7.5 | 9 | 11 | 14.5 | 18 | 22 |
| k | yawng; max | 3.6 | 4.5 | 5.4 | 6.9 | 8.5 | 10.2 |
| k1 | shata | 2.4 | 3 | 3.6 | 4.8 | 6 | 7.2 |
| c | Ref. | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 2 |
| yawng; max | 0.95 | 1.15 | 1.4 | 1.6 | 1.85 | 2.25 | |
| shata | 0.65 | 0.85 | 1 | 1.2 | 1.35 | 1.75 | |
| r1 | yawng; max | 0.6 | 0.7 | 0.8 | 1.1 | 1.4 | 1.6 |
| r | shata | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 |
| da | yawng; max | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 14.2 |
| kw | shata | 1.6 | 2 | 2.3 | 3.1 | 3.9 | 4.7 |
| x | 1.4 | 1.6 | 2 | 2.5 | 3 | 3.5 | |

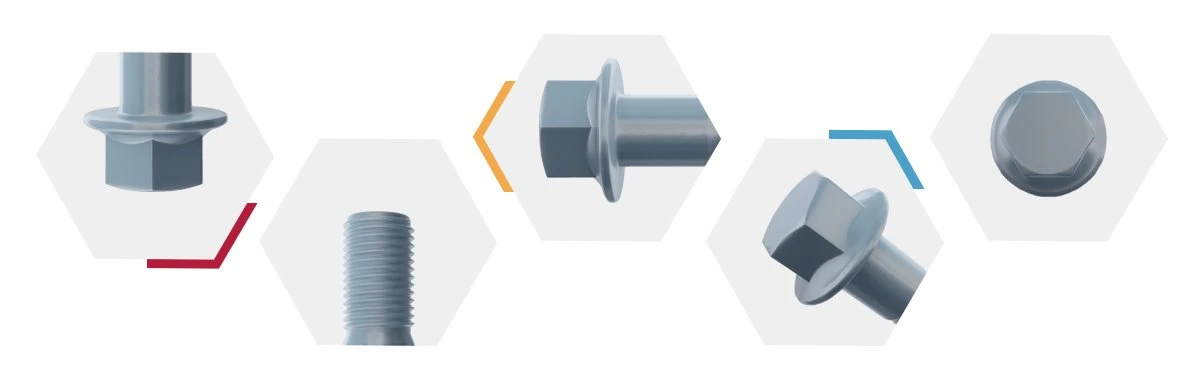

Product hpe hkrak tup tsun dan ai
Product a akyu ni
Akyu ni
1. Flawged Hexagon Bolts ni gaw n-gun n rawng ai daw ni hpe shayawm ya lu ai.
.
3. Hex head flange bolt hpe shinggyin la nna garan ginhka lu na matu loi ai, gram lajang na matu loi ai.
4. Flange bolt ni gaw matut mahkai lam a arung arai ni a npawt nhpang hta phase galai shai ai lam n byin shangun na re.
5. Hexagon flange bolt a flange daw gaw grau kaba ai matut mahkai shara nga ai.
6. AYA a supply system, warhousing system, logistics hte htaw sa ai lam ni gaw aten dep jaw ya lu ai.

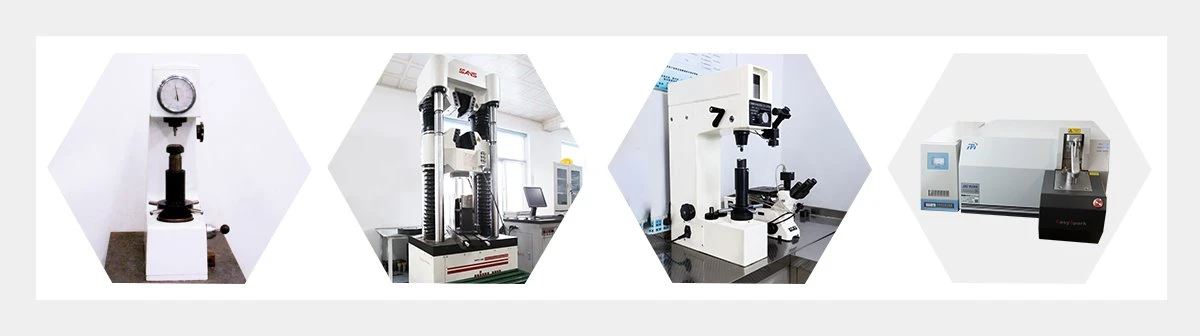

Quality jep joi ai lam
Hpang jahtum na arung arai ni hpe jep joi ai lam gaw ahkyak ai lam langai rai nga ai. AYA gaw ndai ahkyak ai bungli a matu tsep kawp sample hkam la ai check system nga ai rai nna, detail langai hpra hpe tup hkrak jep yu na re.

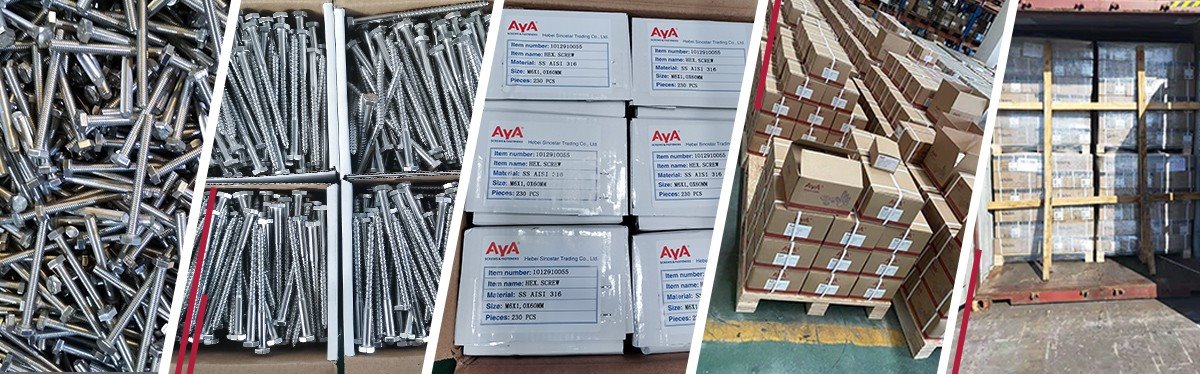

Packaging & Container hpe hpaw ai
AYA a design team gaw customers ni a laklai ai ra kadawn ai lam ni hpe label ni hpe hkap la lu ai.
Usage Scenarios
Hpa Majaw AYA hpe lata ai kun?
AYA gaw shaning shagu mungkan shara shagu na 1000+ hpung masha ni hpe laksan daw jau ai lam ni hpe galaw ya ai, laklai ai chain service solution system hte, mouse hpe dip nna sha, laksan n-gun jaw ai hparan ladat hpe lu la nna, chyinghka-door services hpe hkam sha ra ai.
Hot Tags: n-gun n rawng ai hexagon bolts, Miwa mung, Miwa mung hta galaw ai .
