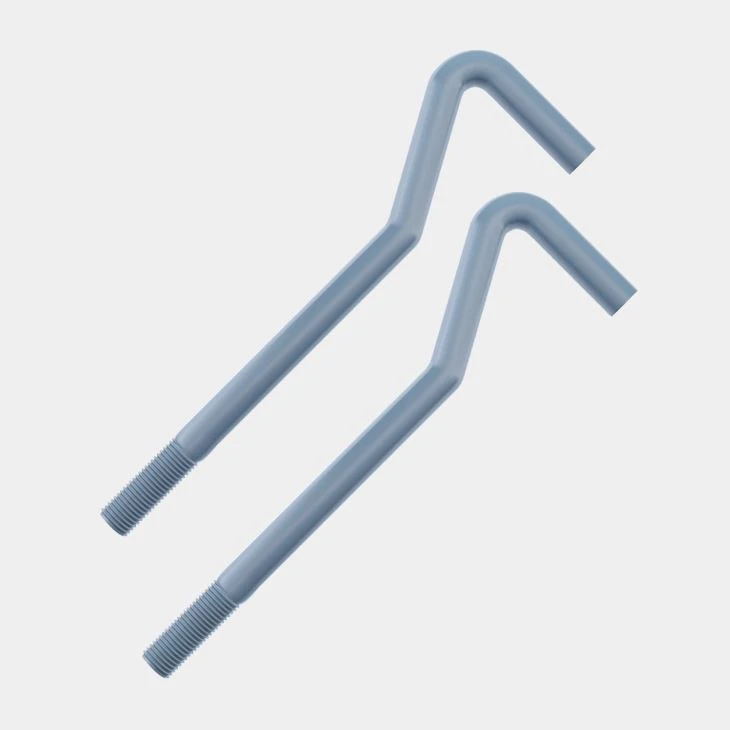

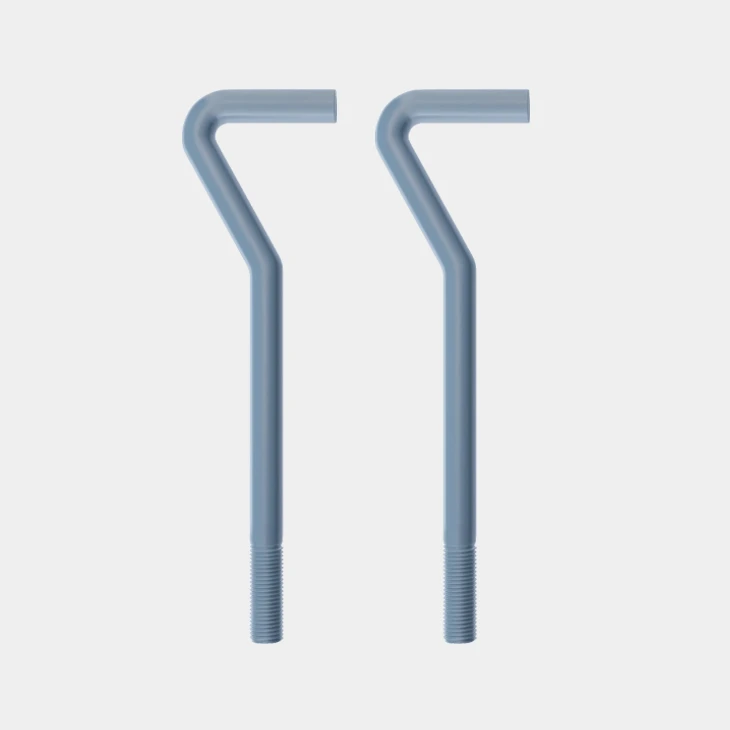

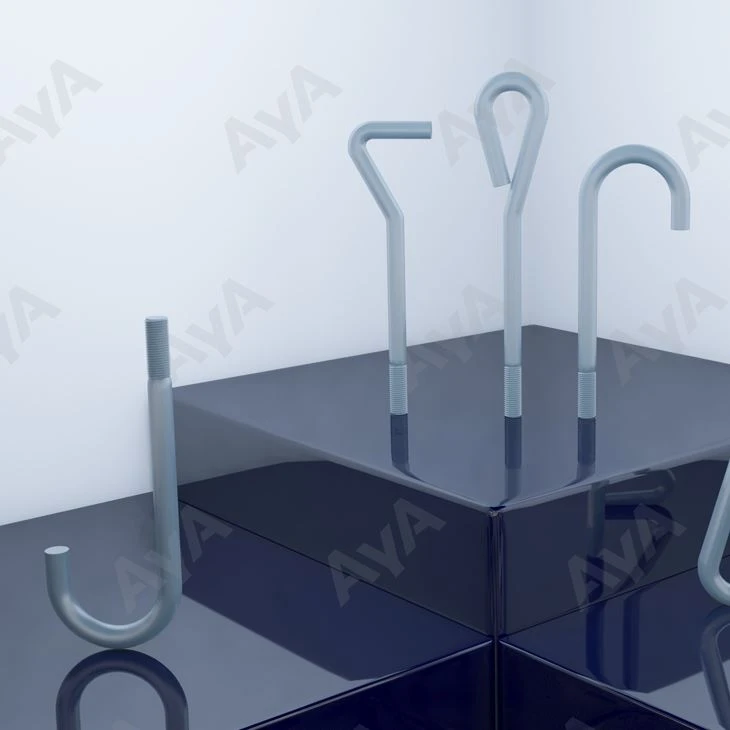

Steel Foundation Bolt ni
Standard: DIN 529
Lagu ga: N hkru n kaja ai lam ni hpe ka da ai.
Arung arai: Steel Foundation Bolts
Bai nna, amying: Concrete hta Foundation Bolts
Arung arai: Carbon Steel
Arung arai ni: 4.6.
Diameter hta M8, M10, M16, M16, M24, M36, M36, M46, M56, M56, M64, M72 ni hpe yu yu ga ai.
Hpang jahtum: Hka htung/ Black Oxide/ Zinc/ Hka lim ai Galvanized/ Dacromet/ sumla hkrung hpe sumla hkrung/ Cadmium Electroplate/ Nickel Plated .
MOQ: 1000kgs
Hpan na aten: Nhtoi 30 kaw nna 6 ya du hkra
Product Introduction
AYA Faseners (Hebei) Co., Ltd. gaw Miwa mung hta n-gang npawt nhpang bolt ni hpe mahkrum madup law dik htum galaw shapraw ai ni hte garan jaw ai ni kaw na langai mi rai nga ai. Ndai Miwa mung kaw anhte a jak rung kaw nna galaw ai tsaw ai steel found bolt ni hpe mari la na matu hkum tsang. Manu bawngban na matu anhte hpe matut mahkai mai ai.
Mungkan ting hta laksan galaw da ai malu masha ni hpe garan gachyan ai wa hku nna, AYA a daw jau ai lam gaw AYA a arai ni zawn sha, mari ai ni hte mung ni htep nga ai. Hkrang shapraw ai kaw nna, tsun sang lang dan ai kaw na, AYA gaw, customers ni a myit tsang ai lam hpe yeng seng kau na matu, customers ni hpe lawan ladan hte n shakut na matu, lawan ladan hte n shakut na re.
Product hpe tsun dan ai
Madang | DIN 529 |
NA | N hkru n kaja ai lam / daw chye ai. |
Gun rai | Steel Foundation Bolt ni |
Bai nna mying shamying ai; shamying ai | Concrete hta Foundation Bolts ni |
Arung arai | Carbon Steel |
Diameter | M8, M10, M12, M16, M20, M24, M30, M36, M42, M48, M56, M64, M72 |
Shangut kau ai | Plain/ Black Oxide/ Zinc/Ht hta bang da ai Galvanized/ Dacromet/ sumla hkrung hpe sumla hkrung/ Cadmium Electroplate/ Nickel Plated |
MOQ | 1000kgs. |
Lead aten | Nhtoi 30 kaw nna 60 ya du ai. |
| Chyum Laika d | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | M72 | |
| P | Pitch hpe la u | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6 |
| b | yawng; max | 22.5 | 28 | 33.5 | 44 | 55 | 66 | 82 | 98 | 114 | 130 | 151 | 172 | 192 |
| min{0}}nominal size | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 90 | 105 | 120 | 140 | 160 | 180 | |
| a | yawng; max | 25 | 32 | 40 | 55 | 65 | 80 | 100 | 120 | 140 | 160 | 185 | 210 | 250 |
| c | yawng; max | 55 | 55 | 70 | 90 | 110 | 130 | 160 | 190 | 230 | 260 | 290 | 340 | 370 |
| e | shata | 35 | 45 | 55 | 70 | 85 | 100 | 120 | 140 | 160 | 180 | 210 | 250 | 290 |
| ①, Dotted line kata na hkrang hpe tinang ra ai hte maren lata la mai ai. ②,Chamfered end (CH) shing nrai RNed (RN)（DIN EN ISO 4753） ③,Shank diameter=n-gang n-gang (hkum tsup ai shan) shing nrai ≈ nsen (thin shank) hpe galaw ai wa lata la ai hte maren. . | ||||||||||||||

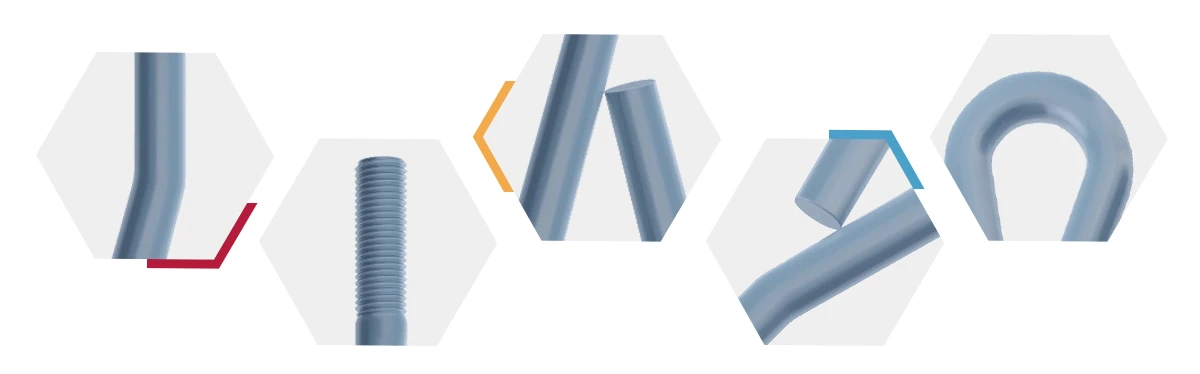

Product hpe hkrak tup tsun dan ai
Product a akyu ni
Steel Foundation Bolt ni a akyu ni
.
2. Steel foundation bolts ni gaw, n-gun ja ai hte ngang grin ai hparan ladat hpe jaw ya ai, structural hte non{1}}structural elements lahkawng yan hpe concrete arung arai ni hte matut mahkai na matu.
3. Concrete foundation bolt ni hpe style amyu myu hte size configuration law law hta mai lang ai, dai hku galaw yang, application amyu myu hte hkrak hkrak rai nga ai.
4. Concrete hpe ru kau ngut ai hpang, loi loi hte chye na lu na matu, bawnu dazik hpe madun da ai.
5. Nta gap ai nta ni, hpaga lam hte seng ai nta ni, lam ni, etc.
6. AYA kaw nang ra kadawn ai lam ni hpe lata nna mari la mai ai.

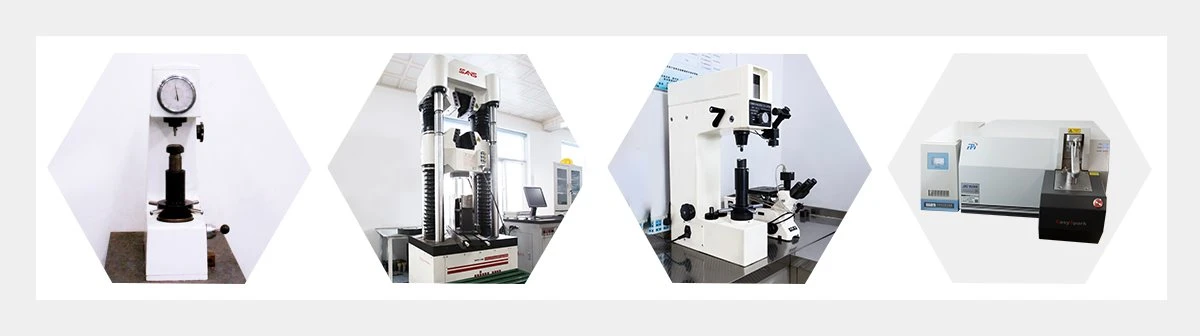

Quality jep joi ai lam
Anhte gaw quality hpe madung tawn nna, galaw shapraw ai lahkam shagu hpe yu reng na matu mahkrum madup nga ai QC hpung langai mi nga ai.
Mahkrum madup nga ai QC magam gun ni gaw, customers ni hpe hkrak ai quality jep joi ai lam ni hpe jaw ya lu ai.

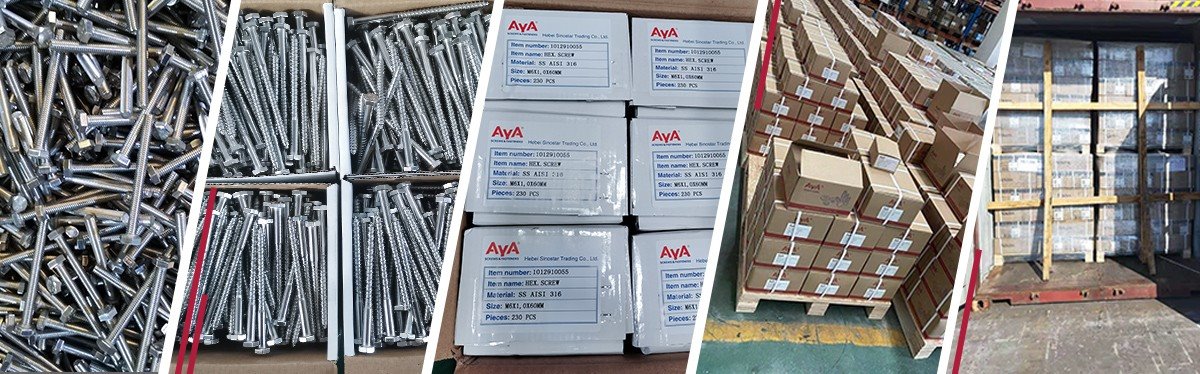

Packaging & Container hpe hpaw ai
AYA a design team gaw customers ni a laklai ai ra kadawn ai lam ni hpe label ni hpe hkap la lu ai.
Automated packing line ni gaw packaging bungli a hkam kaja lam hte lawan ai lam hpe grau kaja hkra galaw ya ai.
Usage Scenarios
Hpa Majaw AYA hpe lata ai kun?
AYA gaw shaning shagu mungkan shara shagu na 1000+ hpung masha ni hpe laksan daw jau ai lam ni hpe galaw ya ai, laklai ai chain service solution system hte, mouse hpe dip nna sha, laksan n-gun jaw ai hparan ladat hpe lu la nna, chyinghka-door services hpe hkam sha ra ai.
