AYA FASTERS lam matsun|Metal Sealing Washer ni Hpa Majaw Hpa Rai Ta?

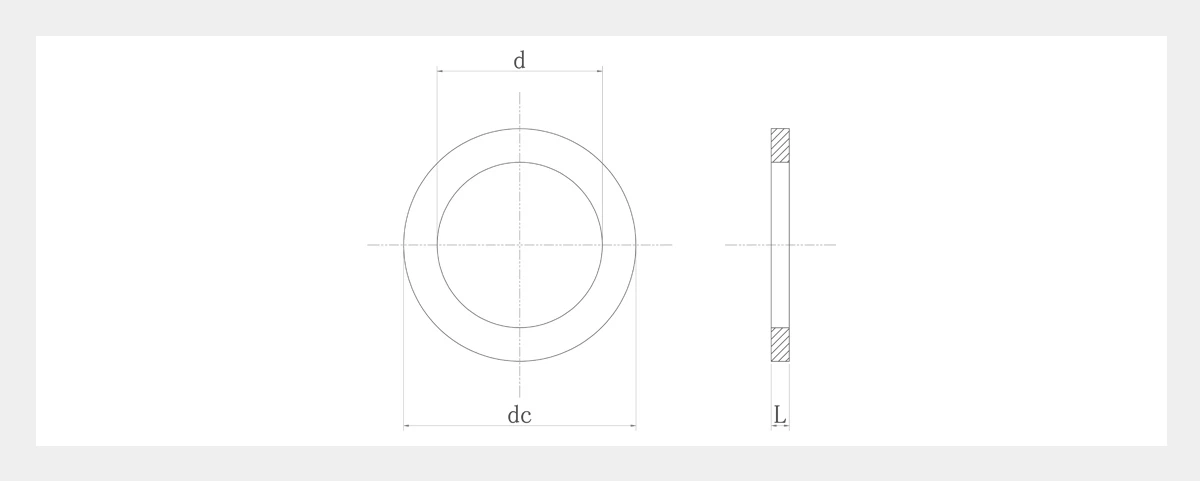

Nominal Diameter d		3	4	5	6	7	8	9	10	11	12	13	14	15	16	17
d	Nominal Size (D12)	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17
	shata	3.02	4.03	5.03	6.03	7.04	8.04	9.04	10.04	11.05	12.05	13.05	14.05	15.05	16.05	17.05
	yawng; max	3.12	4.15	5.15	6.15	7.19	8.19	9.19	10.19	11.23	12.23	13.23	14.23	15.23	16.23	17.23
dc	Nominal Size (d12)	6	8	10	12	13	14	15	16	17	18	19	20	21	22	24
	shata	5.85	7.81	9.81	11.77	12.77	13.77	14.77	15.77	16.77	17.77	18.725	19.725	20.725	21.725	23.725
	yawng; max	5.97	7.96	9.96	11.95	12.95	13.95	14.95	15.95	16.95	17.95	18.935	19.935	20.935	21.935	23.935



Nominal Diameter d		18	19	20	22	22	25	25	26	28	30	32	35	36	37	40
					30	32	35	36
d	Nominal Size (D12)	18	19	20	22	22	25	25	26	28	30	32	35	36	37	40
	shata	18.05	19.065	20.065	22.065	22.065	25.065	25.065	26.065	28.065	30.065	32.08	35.08	36.08	37.08	40.08
	yawng; max	18.23	19.275	20.275	22.275	22.275	25.275	25.275	26.275	28.275	30.275	32.33	35.33	36.33	37.33	40.33
dc	Nominal Size (d12)	25	26	28	30	32	35	36	37	40	42	45	45	45	47	50
	shata	24.725	25.725	27.725	29.725	31.67	34.67	35.67	36.67	39.67	41.67	44.67	44.67	44.67	46.67	49.67
	yawng; max	24.935	25.935	27.935	29.935	31.92	34.92	35.92	36.92	39.92	41.92	44.92	44.92	44.92	46.92	49.92



Nominal Diameter d		42	45	45	48	50	50	52	55	56	56	60	63	65	70	75
			55	56		62	63			70	72
d	Nominal Size (D12)	42	45	45	48	50	50	52	55	56	56	60	63	65	70	75
	shata	42.08	45.08	45.08	48.08	50.08	50.08	52.1	55.1	56.1	56.1	60.1	63.1	65.1	70.1	75.1
	yawng; max	42.33	45.33	45.33	48.33	50.33	50.33	52.4	55.4	56.4	56.4	60.4	63.4	65.4	70.4	75.4
dc	Nominal Size (d12)	52	55	56	60	62	63	65	68	70	72	75	80	85	90	95
	shata	51.6	54.6	55.6	59.6	61.6	62.6	64.6	67.6	69.6	71.6	74.6	79.6	84.53	89.53	94.53
	yawng; max	51.9	54.9	55.9	59.9	61.9	62.9	64.9	67.9	69.9	71.9	74.9	79.9	84.88	89.88	94.88



Nominal Diameter d		80	85	90	95	100	100	105	110	120	130	140	150	160	170
						120	125
d	Nominal Size (D12)	80	85	90	95	100	100	105	110	120	130	140	150	160	170
	shata	80.1	85.12	90.12	95.12	100.12	100.12	105.12	110.12	120.12	130.145	140.145	150.145	160.145	170.145
	yawng; max	80.4	85.47	90.47	95.47	100.47	100.47	105.47	110.47	120.47	130.545	140.545	150.545	160.545	170.545
dc	Nominal Size (d12)	100	105	110	115	120	125	130	140	150	160	170	180	190	200
	shata	99.53	104.53	109.53	114.53	119.53	124.455	129.455	139.455	149.455	159.455	169.455	179.455	189.37	199.37
	yawng; max	99.88	104.88	109.88	114.88	119.88	124.855	129.855	139.855	149.855	159.855	169.855	179.855	189.83	199.83
①, Sut Masa: Shims ni: DIN 1624 hte maren St 2 K50 a quality hpe



Madung Features & akyu ni

Metal seal kashin ai jak ni gaw, dan dawng ai akyu ara ni hte laklai ai lam law law hpe jaw ya ai.

01

Superior hpe makawp maga ai atsam marai ni

Shanhte hta grau kaja ai sealing atsam nga ai, kam hpa mai ai hte hkrak ai seal hpe kam hpa mai ai hte hka lim ai hpe jahkring kau ya ai. Ndai lam a majaw, shanhte gaw n-gun ja ai dazik ra ai application ni a matu grai kaja ai, grau nna hka pipeline hte matut mahkai lam ni zawn re ai n-gun grai ja ai ni hpe ra sharawng ai.

02

Kam hpa mai ai hte ngang kang ai Seal

Hka shin jak ni a n-gun atsam hte dai arung arai ni hpe pat da lu ai atsam gaw kam mai ai hte ngang kang ai dazik hpe jaw ya lu ai. Shanhte gaw, n-gun kaba ai hte nbung laru ni hpe hkam sharang lu ai majaw, yak hkak ai masa hta pyi ngang grin nga ai.

03

Multi-scenario hpe pat da ai.

Metal sealing washer ni gaw n-gun ja ai hte kam mai ai sealing hparan ladat hpe jaw ya ai majaw, shanhte hpe hpaga lam hte hka htung amyu myu a matu hkum tsup ai ladat langai mi rai nga ai.

Metal sealing washer ni gaw, hpaga lam amyu myu hta jai lang ai lam amyu myu hpe tam ma ai.

Ndai washer ni hpe madung lang ai lam langai gaw .hka htung ni, shanhte hpe hka htung ni hte matut mahkai lam ni hta bungli shangun ai. Metal washer ni a kaja dik htum sealing atsam ni gaw, n-gun ja ai hte kam mai ai seal hpe madi shadaw ya ai majaw, hka lim ai lam ni hte hka lim ai lam ni hpe pat shingdang ya lu ai. Nta, hpaga lam, shing nrai, bungli galaw ai shara ni hta rai tim, hka jaw ai shara ni a dinghpring ai lam hpe makawp maga na matu, magri n-gang ni hpe shinggrup da ai hka shin jak ni gaw ahkyak dik rai nga ai.
Plumbing hta n-ga, 2010 ning hta magri hpe pat da ai washer ni hpe grai lang ai.mawdaw lang ai lam. Dai ni hpe engine, transmission hte kaga ahkyak ai daw ni hta shim lum ai dazik ra ai lam ni hta law law lang mu lu ai. Metal washer ni a n-gun kaba ai hte katsi ai hpe hkam jan lu ai atsam gaw mawdaw ni hta hka n-gun amyu myu hpe pat da na matu grai kaja ai. Sau, katsi ai, shing nrai hydraulic fluid rai tim, magri hpe pat da ai washer ni gaw, hka lim ai- n lawm ai sha, mawdaw lam ni a aten galu nna, bungli galaw lu ai atsam hpe n-gun jaw ya ai.
Kaga n-gun n rawng ai hka shin jak ni hpe kaga dan dawng ai hku jai lang ai lam gaw, .galaw shapraw ai hte galaw shapraw ai bungli ni. Ndai washer ni gaw, n-gun ja ai seal ni ra kadawn ai arung arai ni hte jak rung ni hta jai lang ai. Ga shadawn, n san seng ai lam ni hpe makawp maga na matu hte san seng ai lam hpe makawp maga na matu, malu masha hte lu sha ni hpe galaw shapraw ai hpun ni hta, magri ni hpe pat da ai hka shin jak ni hpe lang ai. Dai hte maren, tsi mawan ni hpe galaw ai hpun ni hta, ndai hka shin ai jak ni gaw, n-gun ja ai arung arai ni hpe hparan ya ai ladat ni hta kam mai ai pat da ai lam ni hpe jaw ya ai. Metal sealing washer ni mung aerospace hte makawp maga lam ni hta shanhte a shara hpe mu tam ma ai. Nbungli hte hpyen arung arai ni hkrum sha nga ai ra kadawn ai masa hte grai sawng ai makau grup yin ni hta ngang kang ai sealing hparan ladat ni ra nga ai.
Shanhte a hkam sharang lu ai atsam hte n-gun kaba ai hte katsi ai hpe hkam sharang lu ai atsam hte, ndai hpaga lam ni hta ahkyak ai masa ni a dinghpring ai lam hte shim lum lam hpe hkam sharang lu na matu, magri kashin ai jak ni gaw ahkyak nga ai. Nta kata na jak ni kaw nna, n-gun ja ai jak rung ni du hkra, kam mai ai hte ngang grin ai dazik ra ai, n-gun ja ai jak rung ni hpe jai lang ai. Shanhte a laklai ai lam, n-gun atsam, grai sawng ai masa ni hpe hkam jan lu ai atsam gaw, hkrak tup ai lam hte shim lum lam gaw ahkyak dik htum ai hpaga lam ni hta n mai malap ai hku byin shangun nga ai.
