Pan Head Phillips Sheet Metal Screw
Standard: ASME B 18.6.5M
Thread Type: Tinang hkum tinang-Screw thread
Arung
Bai nna mying shamying da ai: Recessed Pan Baw Screw
Arung arai: Carbon Steel
Tip a hkrang/Shape: Ga san AB .
Diameter: ST2.2×0, ST2.9×1,ST3.5×2,ST4.2×2,ST4.8×2,ST5.5×3,ST6.3×3,ST8×4,ST8.5×4,
Hpang jahtum: N-gu, Nsam Nsam Ngut, Zinc hpe n-gun jaw ai, n-gup n-gu n-gun n-gun n-gun n-gun (ZSL), Zinc Flake, Silver(ZFSHL), Hot hkrat sum ai, n-gup n-gu n-gun yawm ai, Organic, Galvanized, Dacromet, phoshphating, Cadmium Electroplate, Nickel Plated.
Kaga masa: ISO 7049, DIN 7981, ANSI/ASME B 18.6.3, ASME B 18.6.4.
Baw Baw: Pan Baw Nawng
Drive amyu: PZ Drive
MOQ: 1000kgs
Hpan na aten: Nhtoi 30 kaw nna 6 ya du hkra
Product Introduction
AYA Faseners (Hebei), Ltd. gaw Miwa mung hta pan head phillips metal screw hpe grau nna mahkrum madup nga ai ni hte garan jaw ai ni kaw na langai mi rai nga ai. Ndai Miwa mung kaw anhte a jak rung kaw nna galaw ai, manu dan ai pan bawnu shingnip shingna ni hpe mari la mai ai. Manu bawngban na matu anhte hpe matut mahkai mai ai.
Mungkan ting na customized fatening hparan ladat ni hpe garan jaw ai wa hku nna, AYA a hpaji masa gaw AYA a arai ni zawn customers ni hte mung ni htep nga ai. Hkrang shapraw ai kaw nna, tsun sang lang dan ai kaw na, AYA gaw, customers ni a myit tsang ai lam hpe yeng seng kau na matu, customers ni hpe lawan ladan hte n shakut na matu, lawan ladan hte n shakut na re.
MYU CHYUM LAIKA NI
Arung Arung | Pan Head Phillips Sheet Metal Screw |
Bai nna mying shamying ai; shamying ai | Recessed Pan Head Screw |
Arung arai | Carbon Steel |
Madang | ASME B 18.6.5M |
Tip a hkrang/Shape | AB amyu myu |
Diameter | ST2.2×0,ST2.9×1,ST3.5×2,ST4.2×2,ST4.8×2,ST5.5×3,ST6.3×3,ST8×4,ST9.5×4. |
Shangut kau ai | Hkrang nsam hpraw ai Oxide, Zinc hpe n-gun jaw ai, n-ga n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-gun n-nga ai shara |
Kaga madang langai mi | ISO 7049, DIN 7981, ANSI/ASME B 18.6.3, ASME B 18.6.5M |
Type baw nu | Pan Bawm |
Type mawdaw gau ai | PZ Drive |
NA | Tinang hkum hpe-Screw Thread |
TABLE

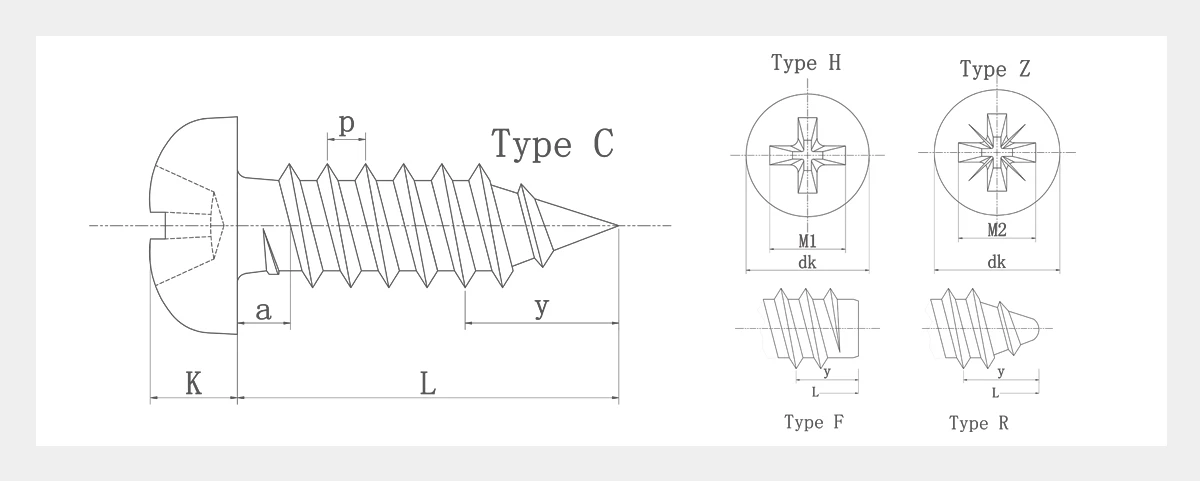

| Chyum Laika d | ST2.2. | ST2.9. | ST3.5. | ST4.2. | ST4.8. | ST5.5. | ST6.3. | ST8 | ST9.5. | |
| P | Nsen nyem tsaw | 0.8 | 1 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | 2.1 | 2.1 |
| dk | yawng; max | 4 | 5.6 | 7 | 8 | 9.5 | 11 | 12 | 16 | 20 |
| shata | 3.7 | 5.3 | 6.6 | 7.6 | 9.1 | 10.5 | 11.5 | 15.5 | 19.4 | |
| k | yawng; max | 1.6 | 2.4 | 2.6 | 3.1 | 3.7 | 4 | 4.6 | 6 | 7.5 |
| shata | 1.4 | 2.2 | 2.3 | 2.8 | 3.4 | 3.7 | 4.3 | 5.6 | 7.1 | |
| R | Ref. | 3.2 | 5 | 6 | 6.5 | 8 | 9 | 10 | 13 | 16 |
| r | shata | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 |
| M | Ref. | 1.82 | 2.9 | 3.92 | 4.4 | 4.9 | 6.44 | 6.92 | 9.02 | 10.18 |
| t | Ref. | 1.19 | 1.76 | 1.95 | 2.45 | 2.95 | 2.31 | 3.81 | 4.88 | 6.09 |
| b | shata | 13 | 17 | 21 | 25 | 29 | 33 | 38 | 38 | 38 |
| Socket No. | 0 | 1 | 2 | 2 | 2 | 3 | 3 | 4 | 4 | |
| Thread and Point amyu hpan | AB,B,BF,BT | AB,B,BF,BT | AB,B,BF,BT | AB,B,BF,BT | AB,B,BF,BT | AB,B,BF,BT | AB,B,BF,BT | AB,B,BF,BT | AB,B,BF,BT | |
| Chyum Laika d | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | |
| P | Nsen nyem tsaw | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| dk | yawng; max | 4 | 5 | 5.6 | 7 | 8 | 9.5 | 12 | 16 | 20 |
| shata | 3.7 | 4.7 | 5.3 | 6.6 | 7.6 | 9.1 | 11.5 | 15.5 | 19.4 | |
| k | yawng; max | 1.6 | 2.1 | 2.4 | 2.6 | 3.1 | 3.7 | 4.6 | 6 | 7.5 |
| shata | 1.4 | 1.9 | 2.2 | 2.3 | 2.8 | 3.4 | 4.3 | 5.6 | 7.1 | |
| R | Ref. | 3.2 | 4 | 5 | 6 | 6.5 | 8 | 10 | 13 | 16 |
| r | shata | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 |
| M | Ref. | 1.82 | 2.68 | 2.9 | 3.92 | 4.4 | 4.9 | 6.92 | 9.02 | 10.18 |
| t | Ref. | 1.19 | 1.53 | 1.76 | 1.95 | 2.45 | 2.95 | 3.81 | 4.88 | 6.09 |
| b | shata | 12 | 15 | 18 | 21 | 24 | 30 | 38 | 38 | 38 |
| Socket No. | 0 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 | |
| Thread and Point amyu hpan | D,F,T | D,F,T | D,F,T | D,F,T | D,F,T | D,F,T | D,F,T | D,F,T | D,F,T | |

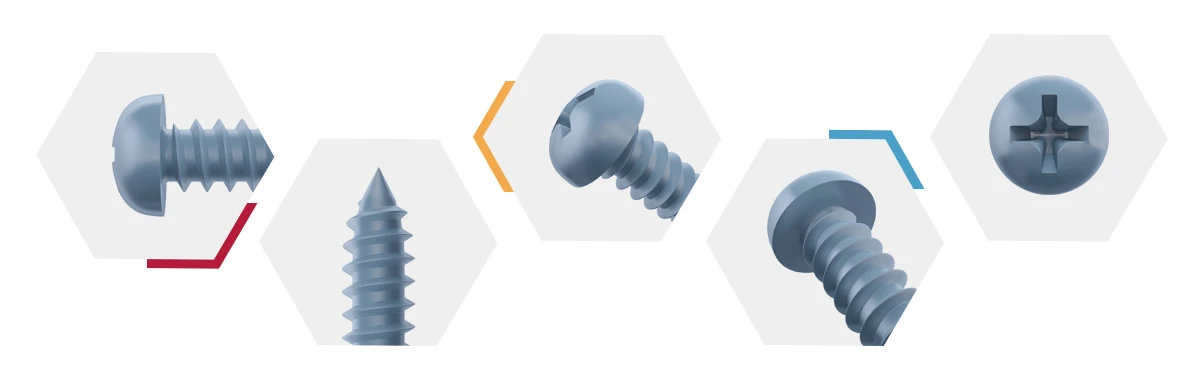

MUNGDAN DETAIL
MUNGDAN SHAGAWM AI
Pan Head Phillips a N-gup magap Metal Screw
.
2. Hpun (sh) magri daw ni hpe n-gun n rawng hkra galaw na matu lang mai ai.
3. Baw gaw npu kaw na pru wa na n re, dai majaw lata la ai arai hpe lang ai ni gaw n shim lum ai ngu hkam sha na n re.
4. Ndai screw ni hpe premium quality stainless steel hte kaga arung arai ni hte galaw da ai majaw, n-gun n rawng ai lam ni hte n-gun n rawng ai lam ni hpe n mu lu na re.
5. AYA hta kam mai ai raw materials ni hte galaw da ai pan baw screw ni hpe mahkawng da ai. Dai majaw, ndai screw ni hta quality gaw manghkang n byin na re.
6. Anhte a pan Phillips sheet metal screw ni hpe manu dan dik ai hku lu la mai ai.
